Middle Earth SBG – Ancient Ruins Basing Tutorial


I absolutely love going to town on the basing of my miniatures. It’s just another excuse to add some character, variety and unification to your armies. It’s all about adding that story that really brings your miniatures to life.

The most recent basing I have been doing is for my Azog’s Legion force and today I’m going to show you what you need and how to go about making them.

I’ll be doing a series of tutorials on basing, both the modelling and the painting, so look out for future articles.

What you will need:

  • Cork Roll. I use a 2.5mm thickness, like this. This is readily available from most hobby stores, so if you do have a model train store nearby pop in and take a look. Just one of these rolls will easily last you the whole army.
  • Plasticard. I have so far been using a fairly thin, 1mm, variety. This does make it a bit easier to cut and model, but doesn’t look quite as good as a thocker variety.
  • Sand. I used Fine Sand from Basecrafts.
  • Mixed cork. Used for detailing. Can be found here, or like the cork roll can be found in hhobby stores.
  • PVA
  • Super Glue
  • Clippers
  • Modelling Knife

Building the Bases

20181108_130951

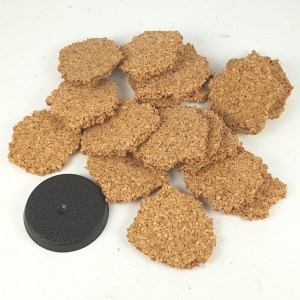

Begin by breaking the cork roll down into smaller, circular sections. I used the base as a template and broke the cork off around the edge. Always make more than required as these can be used for extra levels and details.

20181108_131031

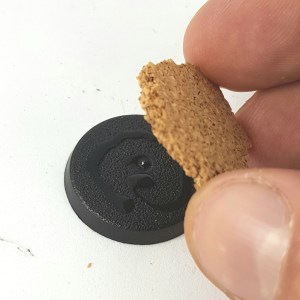

Glue one of the circles to the top of the base with superglue.





















20181108_131113

Once dry this will give you your first layer.

20181108_131155

Due to some of the drying times involved I’ll always build a few bases at a time, usually enough for a warband.

















20181108_131228

Cut the plasticard down into small rectangular and square shapes. They don’t need to be uniform as the ruins are quite, well…ruined.

20181108_131304

Using super glue attach each segment at a time to build up the paving on top of the cork.



















20181108_131344

Clip off the excess plasticard around the edge of the base. The aim is to keep to the circle but still retain an angular look.

20181108_131428

That’s the second layer done. Normally I would attach figures at this point. It can limit your ability to paint the base but does ensure the mini will be a good fit.



















20181108_131507

Next up is weathering the plasticard. Using the modelling knife make scratches across the surface. The more you add the more beaten up the ruins will look.

20181108_131538

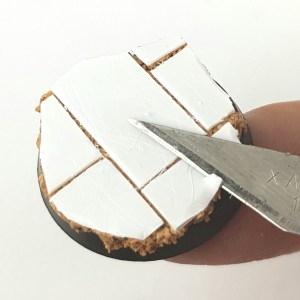

Also use the knife to shave down the edges and add some bigger cuts.





















20181108_131634

Use super glue to add a few peices of the mixed cork across the bases.

20181108_132121

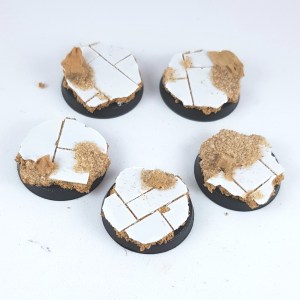

Use PVA to add some of the fine sand onto small areas of the bases. I focussed on any cork visible on the top, around the mixed corks and in the cracks.



















20181108_132153

Once the pva was dry I added a layer to seal in the sand. This was acheived with a mix of 1 part PVA to 6 parts water. I add this to all my bases that include sand as it really secures everything and cuts down on wear and tear.





















20181108_131706

The beauty of the cork is it’s quite an easy material to cut and craft into unique features.

20181108_131738

A simple slice like this and both parts can be used to make a staircase.



















20181108_131842

Glued one on top of the other they add that extra dimension and retain the circle shape.

20181108_131919

You can utilise this to make some pretty funky and diverse ruins. Just remember to test fit your miniatures so you know they will fit and loook good.

















20181108_132000

you will need to cut the plasticard to fit the middle step, but the bottom and top can overhang to be cut down.

20181108_132044

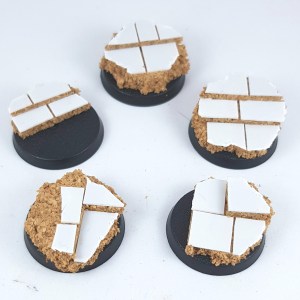

From there it’s just finishing them up just like the others by adding mixed cork, sand and a seal.



















And there you have it. This is how I built and will continue to build all the bases for my Azog’s Legion force. I hope you all find it usual and I would love to see some of the bases you make using it, pop me an email at deathwatchstudios@gmail.com, find me on Facebook or Instagram.

Join me soon to find out just how I painted them as well.

All of my guides will continue to be free and open for use by anyone, but if you did find this guide helpful please support me with a donation, so I can continue to make great tutorials like this one!
